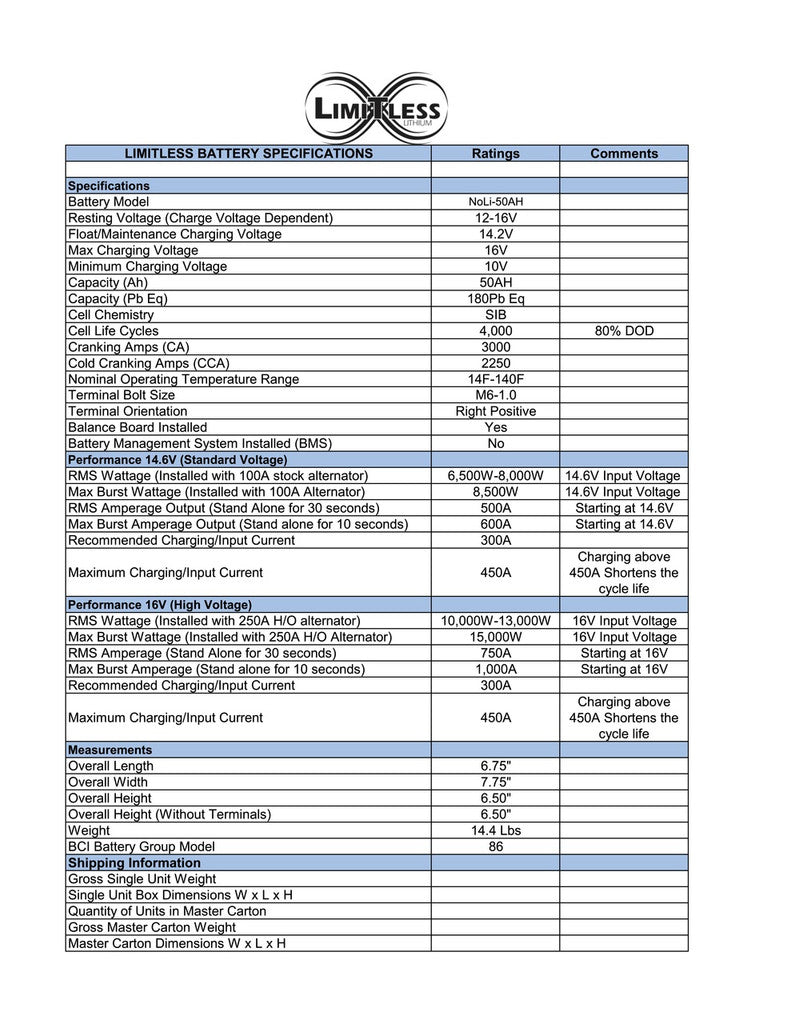

LIMITLESS BATTERY SPECIFICATIONS

Ratings

Comments

• Specifications

Battery Model

NoLi-50AH

Resting Voltage (Charge Voltage Dependent)

12-16V

Float/Maintenance Charging Voltage

14.2V

Max Charging Voltage

16V

Minimum Charging Voltage

10V

Capacity (Ah)

50AH

Capacity (Pb Eq)

180Pb Eq

Cell Chemistry

SIB

Cell Life Cycles

4,000

80% DOD

Cranking Amps (CA)

3000

Cold Cranking Amps (CCA)

2250

Nominal Operating Temperature Range

14F-140F

Terminal Bolt Size

M6-1.0

Terminal Orientation

Right Positive

Balance Board Installed

Yes

Battery Management System Installed (BMS)

No

• Performance 14.6V (Standard Voltage)

RMS Wattage (Installed with 100A stock alternator)

6,500W-8,000W

14.6V Input Voltage

Max Burst Wattage (Installed with 100A Alternator)

8,500W

14.6V Input Voltage

RMS Amperage Output (Stand Alone for 30 seconds)

500A

Starting at 14.6V

Max Burst Amperage Output (Stand alone for 10 seconds)

600A

Starting at 14.6V

Recommended Charging/Input Current

300A

Maximum Charging/Input Current

450A

Charging above 450A Shortens the cycle life

• Performance 16V (High Voltage)

RMS Wattage (Installed with 250A H/O alternator)

10,000W-13,000W

16V Input Voltage

Max Burst Wattage (Installed with 250A H/O Alternator)

15,000W

16V Input Voltage

RMS Amperage (Stand Alone for 30 seconds)

750A

Starting at 16V

Max Burst Amperage (Stand alone for 10 seconds)

1,000A

Starting at 16V

Recommended Charging/Input Current

300A

Maximum Charging/Input Current

450A

Charging above 450A Shortens the cycle life

• Measurements

Overall Length

6.75"

Overall Width

7.75"

Overall Height

6.50"

Overall Height (Without Terminals)

6.50"

W eight

14.4 Lbs

BCI Battery Group Model

86
