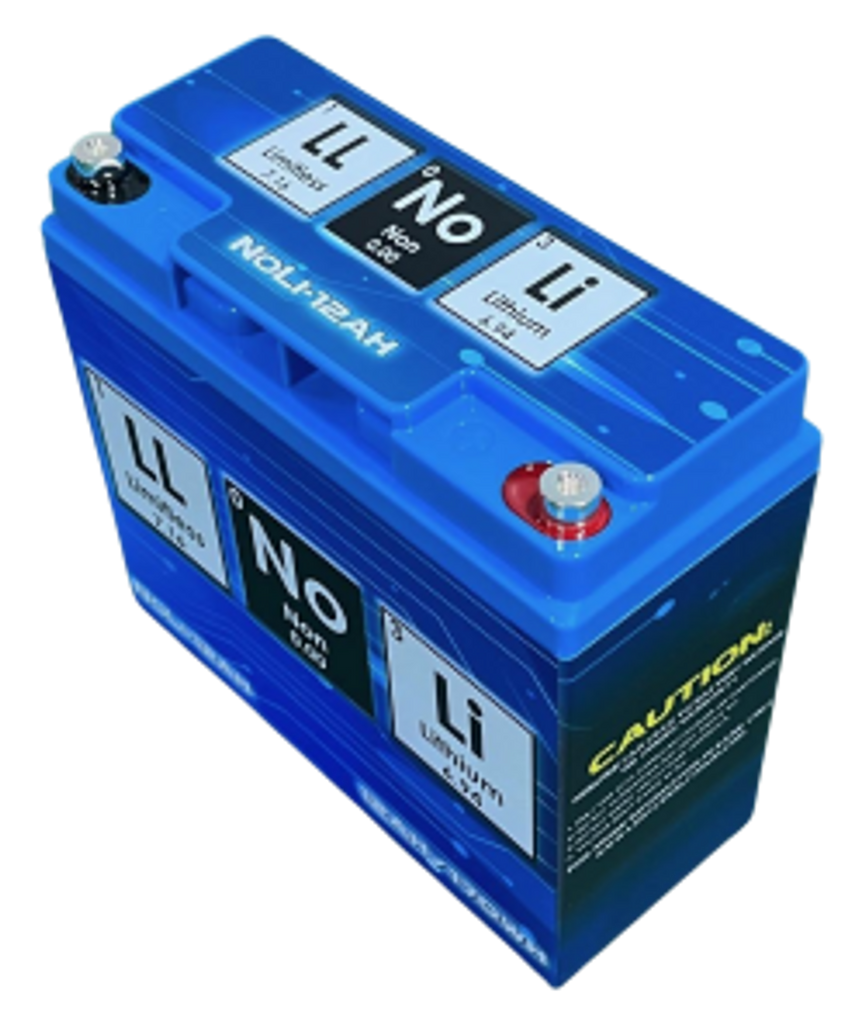

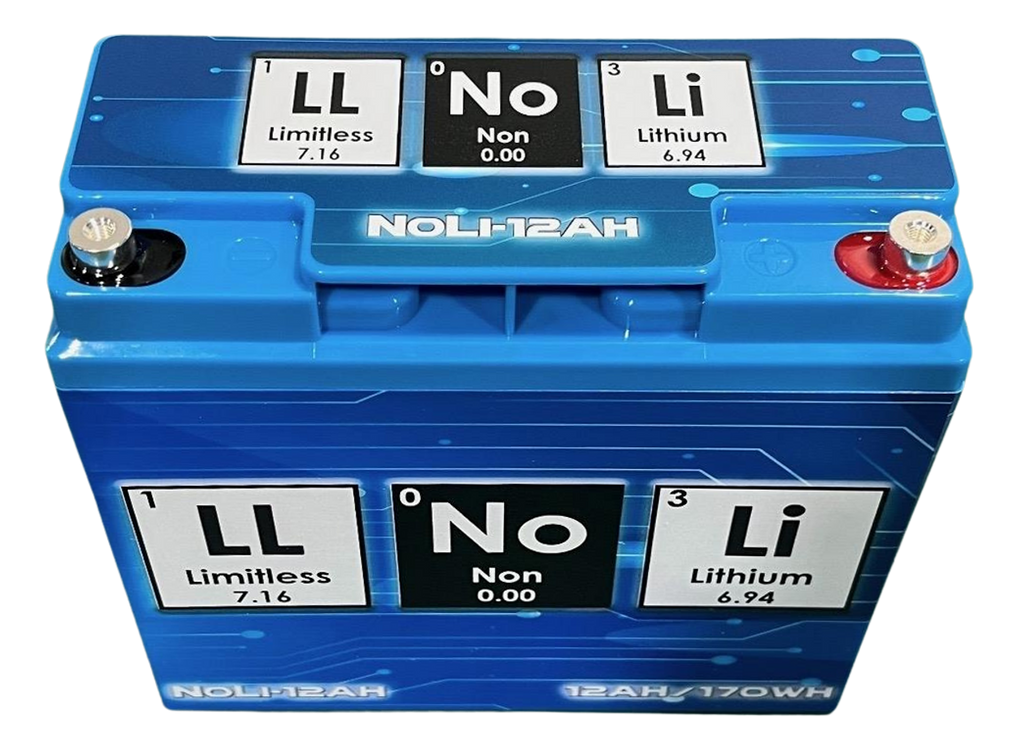

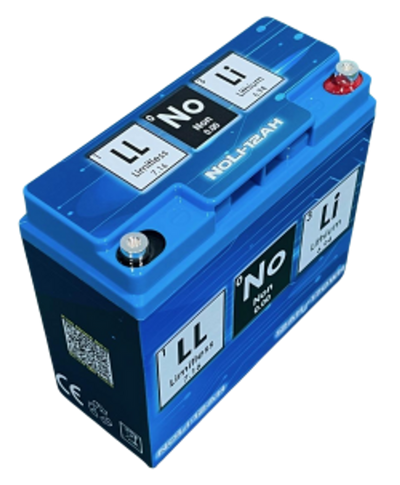

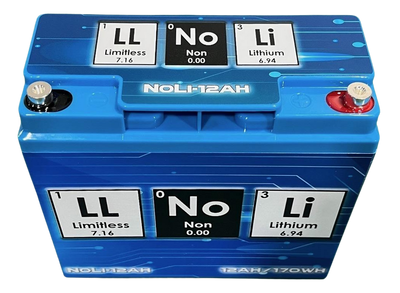

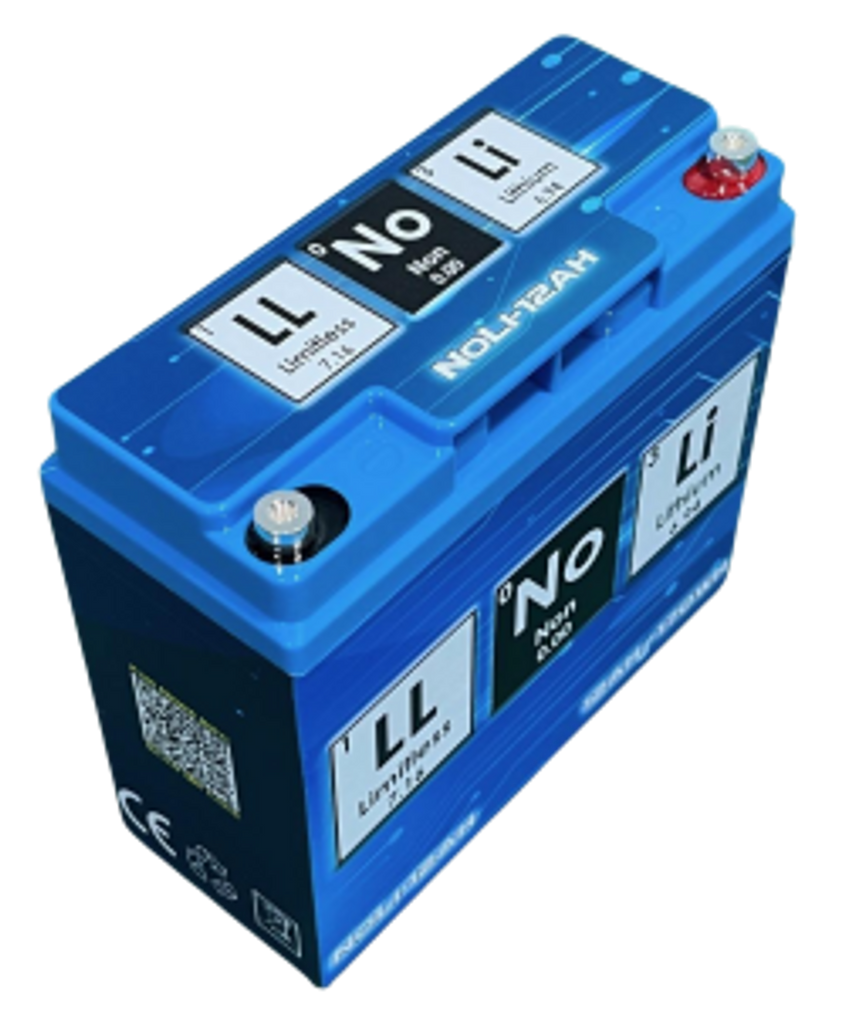

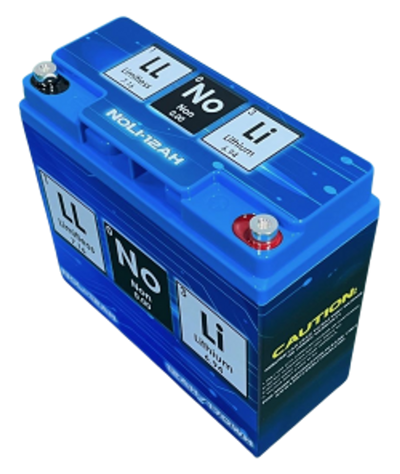

Limitless Lithium NoLi Sodium 12Ah Battery
$398.95
Built to order, ships in 2-3 weeks.
FREE shipping to the lower 48
Product details
Description
| LIMITLESS BATTERY SPECIFICATIONS | Ratings | Comments |
|
||
| Battery Model | NoLi-12AH | |
| Resting Voltage (Charge Voltage Dependant) | 12-15.5V | |
| Float/Maintanance Charging Voltage | 14.2V | |
| Max Charging Voltage | 16V | |
| Minimum Charging Voltage | 10V | |
| Capacity (Ah) | 12AH | |
| Capacity (Pb Eq) | 48Pb Eq | |
| Cell Chemistry | SIB | |
| Cell Life Cycles | 4,000 | 80% DOD |
| Craking Amps (CA) | 1170 | |
| Cold Craking Amps (CCA) | 880 | |
| Nominal Operating Temperature Range | 14F-140F | |
| Terminal Bolt Size | M5 | |
| Terminal Orientation | Right Positive | |
| Balance Board Installed | Yes | |
| Battery Management System Installed (BMS) | No | |
|
||
| RMS Wattage (Installed with 100A stock alternator) | 2,000-2,500W | 14.6V Input Voltage |
| Max Burst Wattage (Installed with 100A Alternator) | 3,500W | 14.6V Input Voltage |
| RMS Amperage Output (Stand Alone for 30 seconds) | 75A | Starting at 14.6V |
| Max Burst Amperage Output (Stand alone for 10 seconds) | 150A | Starting at 14.6V |
| Recommended Charging/Input Current | Stock Alt | |
| Maximum Charging/Input Current | 300A | Charging above 300A Shortens the cycle life |
|
||
| RMS Wattage (Installed with 100A stock alternator) | 2,500-3,000W | 16V Input Voltage |
| Max Burst Wattage (Installed with 100A Alternator) | 4,000W | 16V Input Voltage |
| RMS Amperage (Stand Alone for 30 seconds) | 100A | Starting at 16V |
| Max Burst Amperage (Stand alone for 10 seconds) | 200A | Starting at 16V |
| Recommended Charging/Input Current | Stock Alt | |
| Maximum Charging/Input Current | 300A | Charging above 300A Shortens the cycle life |
| Measurements | ||
| Overall Length | 7" | |
| Overall Width | 3" | |
| Overall Height | 6.5" | |
| Overall Height (Without Terminals) | 6.5" | |
| Weight | 4.10 LBS | |
| BCI Battery Group Model | 20 | |
| Shipping Information | ||
| Gross Single Unit Weight | 4.15 LBS | |
| Single Unit Box Dimensions W x L x H | 3.75 x 8.5 x 8.25 | |
| Quantity of Units in Master Carton | 6 | |
| Gross Master Carton Weight | 28.10 LBS | |
| Master Carton Dimensions W x L x H | 11.5 X 19.5 x 13 |
