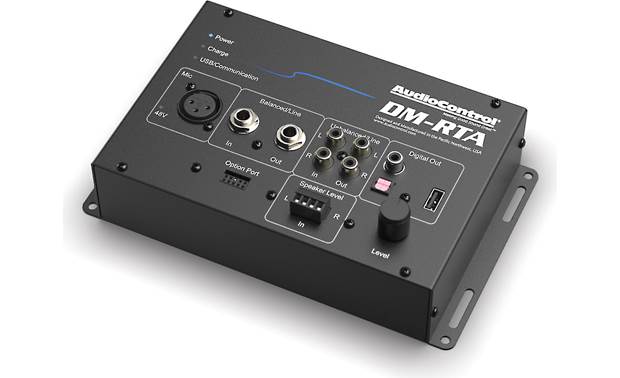

Audio Control DM-RTA

Audio Control DM-RTA

Regular price$695.00
/

  • Free shipping*

Real Time Analyzer And Multi-test Tool

Building from a legacy of trusted professional audio measurement products, the DM-RTA™ brings the vital tools you rely on to one indispensable interface. Populated with every connector we could think of, and coupled with the new DM-RTA app, AudioControl’s DM-RTA helps you take your car audio, marine audio or home theater installations to new levels of perfection and control.

The DM-RTA connects to a Mac or PC via USB, or to a phone or tablet via Bluetooth using the AC-BT24 Bluetooth Streamer/Programmer (available separately).

Features

  • Test and Measure Any Signal
  • Balanced Line Level Inputs and Outputs
  • Unbalanced Line Level Inputs and Outputs
  • Speaker Level Inputs (handles up to 400 watts)
  • Microphone Input with 48V Phantom Power (microphone sold separately)
  • Microphone presets (for CM-10, CM-20 & C550H)
  • Digital and USB Outputs
  • Connect to PC/Mac, Phone or Tablet
  • Option Port for Bluetooth Connectivity
  • Battery Powered and Compact for Portability
  • DM-RTA app available in downloads for Mac/PC

Specifications

Inputs

  • 1 x Balanced (Input Impedance 3.24kΩ)
  • 1 x Unbalanced (Input Impedance 3.24kΩ)
  • 1 x Microphone (Input Impedance 10kΩ)
  • 1 x Speaker Level (Input Impedance 16.24kΩ)
  • Max Low Level Input Voltage: 8 Vrms
  • Max High Level Input Voltage: 40 Vrms

Outputs

  • 1 x Balanced (Output Impedance: 51Ω)
  • 1 x Unbalanced (Output Impedance: 51Ω)
  • 1 x Coax Digital (Output Impedance: 75Ω)
  • 1 x Toslink
  • 1 x USB
  • Max Output Voltage from Signal Generator: 5 Vrms / 7 V Peak

General

  • Power Supply:
  • Battery Life: ~5 Hours

Weights & dimensions

  • Dimensions: 8”W x 4.8”D x 2.4”H
  • Weight: 2.6lbs (1.2kg)

In the box: DM-RTA, USB Cable, Power Supply, Manual, Warranty

As soon as your item is ready to ship you will receive an email with tracking information. We use FedEx, UPS and YRC Freight for all shipments.

*Shipping is free in the lower 48 states, unless otherwise stated.
