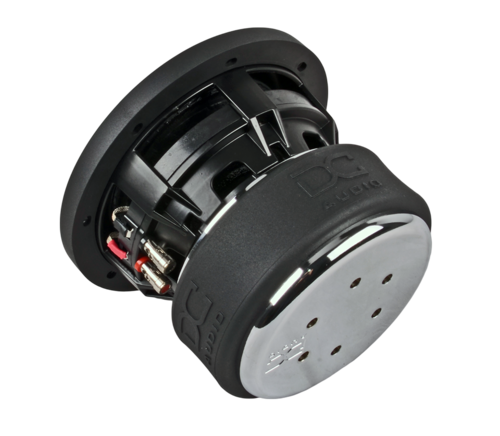

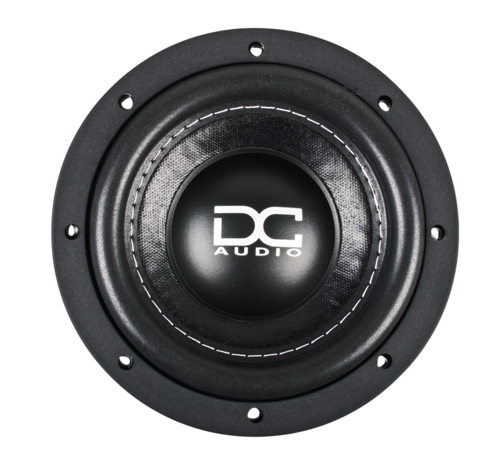

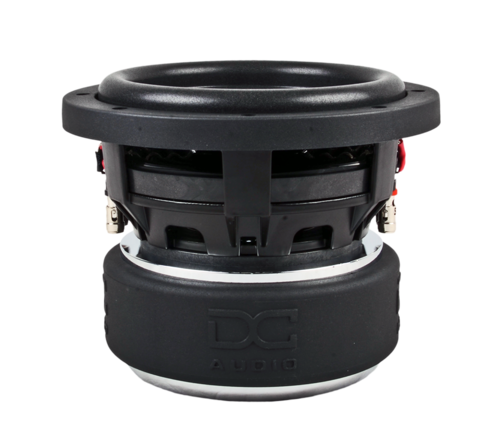

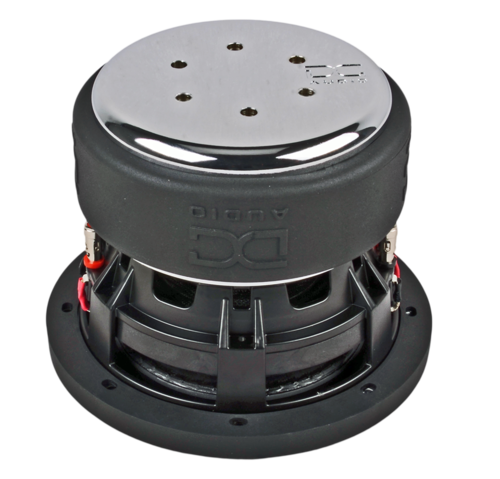

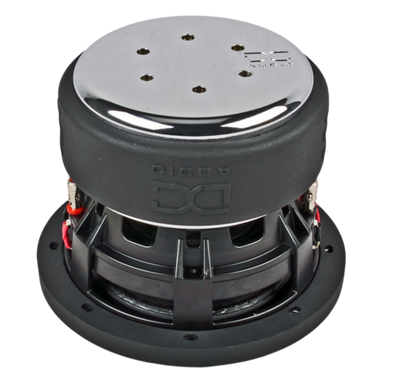

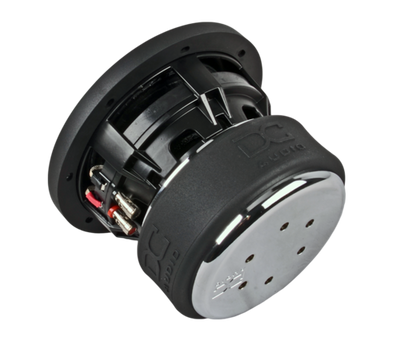

DC Audio M3 6.5” Subwoofer

As newer cars and trucks with less and less space are being designed and released, a demand for a smaller subwoofer with high output is needed to supply the demand for “Bass in a small space” application. The DC Audio 6.5 inch subwoofer is just that. Designed to work in extremely small box volumes “0.3 cubic feet each ported” and give you the maximum amount of output. These little monsters have you covered on the low frequency spectrum.

Key Features

• Extremely rigid non-pressed paper cone assembly

• High Roll Stitched Multilayered reinforced polymer foam surround

• Rigid propylene dust cover with White DC logo

• Laminated Nomex Spiders

• Sewn flat heavy duty tinsel lead wire

• Die-Cast aluminum black frame

• FEA analyzed and optimized motor assembly – Fully CNC machined

• Rubber mounting gasket and custom tooled motor boot.

• DVC 2 Copper voice coil.

T/S Parameters

Sub Size6.5"

Mounting Depth 5"

Mounting Hole Diameter 5.82"

Outside Driver Diameter 7.16"

Weight 80oz

Magnet Material ferrite

VC Diameter 2"Copper

Displacement .05³ ft

Power Handling RMS/Peak 300/600

Impedance (Ohm) D2/D4

Sd 14.314cm²

Vas 3.464L

Cms 119 um/n

Mms 92.57 g

Fs 47.9 Hz

BL 14.4 N/A

Re 4 Ohm

Le

Qms 3.126

Qes 0.537

Qts 0.456

Xmax 16mm

Ref SPL @ 1 watt 80.4

Suggested Sealed .15

Suggested Ported .3³ ft
