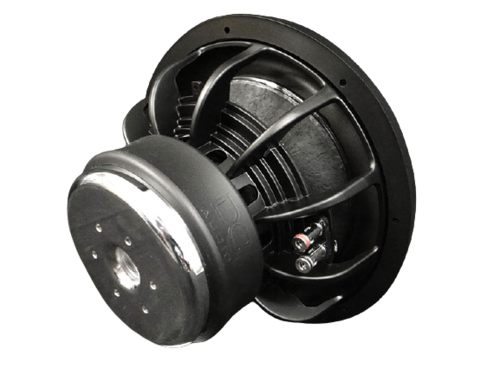

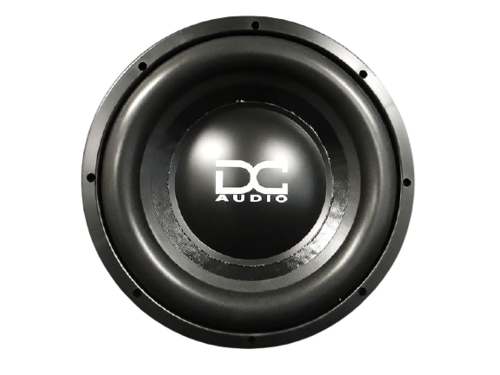

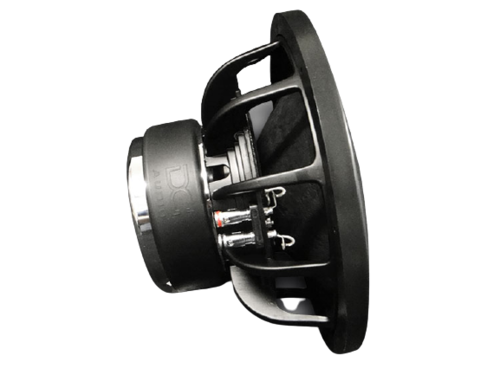

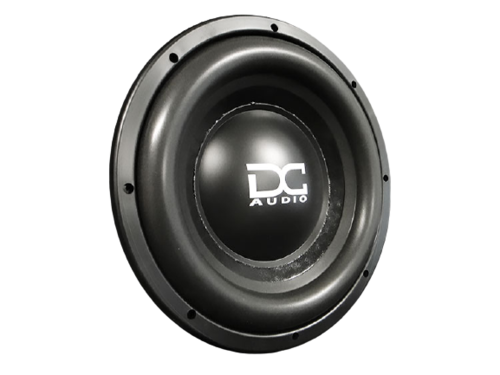

DC Audio Level 2 10"
DC Audio Level 2 10"
DC Audio Level 2 10"
DC Audio Level 2 10"

DC Audio Level 2 10"

Regular price$239.99
/

  • Free shipping*

Key Features
• Extremely rigid non-pressed paper cone assembly
• Multilayered polymer wide roll foam surround
• Polypropylene dust cover with embossed DC logo
• 8” OD flat linear roll spider
• Heavy duty interweaved tinsel lead wire sewn to the spider
• Cast aluminum black frame
• FEA analyzed and optimized motor assembly - Fully CNC machined
• Rubber mounting gasket
• Chrome spring loaded push terminals
• 2.5” Hi-temp copper voice coil wound on black anodized voice coil former
• Rubber magnet cover

  10" 12" 15"
Mounting Depth 5.5" 6" 7.5"
Mounting Hole Diameter 9.35" 11" 14"
Outside Driver Diameter 11.0" 12.5" 15.7"
Weight 18lbs 18.5lbs 19.5lbs
VC Diameter 2.5" 2.5" 2.5"
Displacement .12³ ft .14³ ft .16³ ft
Magnet Weight 15lbs 15lbs 15lbs
Power Handling RMS/Peak 600/1200 600/1200 600/1200
Impedance (Ohm) D2 or D4 D2 or D4 D2 or D4
Sd 324cm² 481cm² 823cm²
Vas 13.89 liters 30.6 liters 89.59 liters
Cms 0.095 mm/N 0.095 mm/N 0.095 mm/N
Mms 210 g 245 g  302 g
Fs 35.6 Hz 33 Hz 29.7
BL 24 N/A 24 N/A 24 N/A
Re 7.20 ohm 7.20 ohm 7.20 ohm
Le 7 mH 7 mH 7 mH
Qms 8.96 8.46 9.4
Qes 0.592 0.639 0.71
Qts 0.555 0.594 0.66
Xmax 22 mm 22 mm 22 mm
Ref SPL @ 1 watt 82.1 dB (82.6@2.83V) 84.2 dB (84.7@2.83V) 87 dB (87.5@2.83V)
Suggested Sealed .5³ ft .75³ ft 2³ ft
Suggested Ported  1.0³ ft 1.25³ ft 3.0³ ft

As soon as your item is ready to ship you will receive an email with tracking information. We use FedEx, UPS and YRC Freight for all shipments.

*Shipping is free in the lower 48 states, unless otherwise stated.
