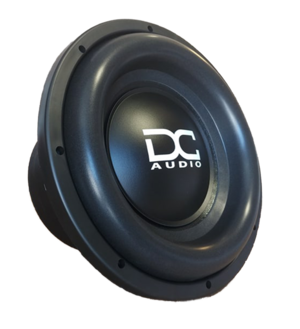

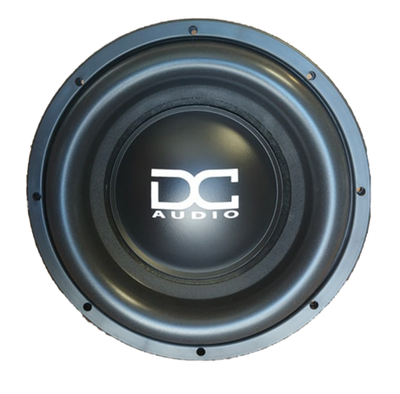

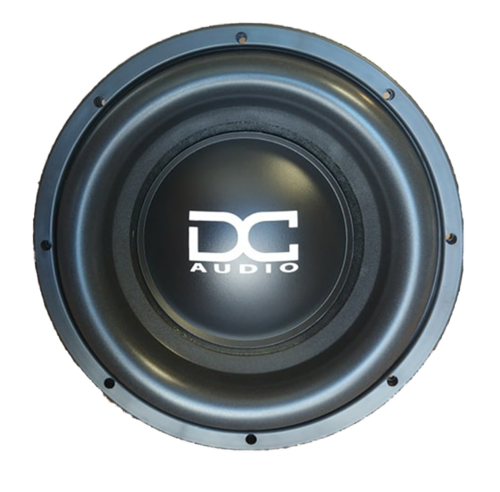

DC Audio Level 4 10"
- Free shipping*

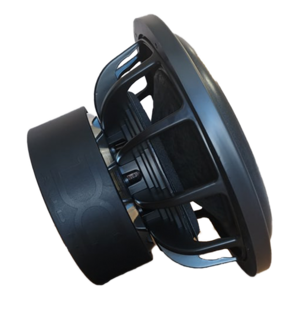

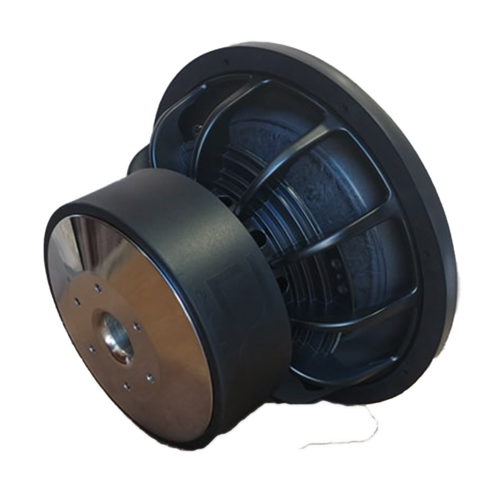

The Level 4 m2 was designed to take even more power and get even louder than the m1. With fantastic power handling and smashing lows its hard to beat. The Level 4 sub is a large triple stacked motor, wrapped in a magnet boot with a chrome top plate and T yoke yielding 23.5mm of X-Max. Furthermore, you get the upgraded triple progressive spiders, cone, surround, 3" coil, cast basket, push terminals and upgraded lead wire sewn to the spider. This sub is rated at 1400w RMS and 2800w peak. |
|
|
Ported or sealed, this is a great choice for high-powered daily systems and competitors. As always, this sub is made with high quality parts and hand built in the USA. |
Key Features
• Extremely rigid non-pressed paper cone assembly
• Multilayered polymer foam surround
• Polypropylene dust cover with embossed DC logo
• Triple 8"OD semi cup progressive roll spider
• Extra heavy duty interweaved tinsel lead wire sewn down to spider
• Cast aluminum black frame
• FEA analyzed and optimized motor assembly – Fully CNC machined
• Rubber mounting gasket
• Chrome spring loaded push terminals
• 3" Hi-temp Edge wound aluminum voice coil wound on black anodized voice coil former
• Rubber magnet cover
10" | 12" | 15" | 18" | |
Mounting Depth | 6.25" | 6.75" | 8" | 9.5" |
Mounting Hole Diameter | 9.25" | 11" | 14" | 16.75" |
Outside Driver Diameter | 11.0" | 12.5" | 15.7" | 18.5" |
Motor Width | 7.75" | 7.75" | 7.75" | 7.75" |
Weight | 32lbs | 33lbs | 33.5lbs | 36lbs |
VC Diameter | 3" | 3" | 3" | 3" |
Displacement | .16³ ft | .18³ ft | .21³ ft | .26³ ft |
Magnet Weight | 29lbs | 29lbs | 29lbs | 29lbs |
Power Handling RMS/Peak | 1400/2800 | 1400/2800 | 1400/2800 | 1400/2800 |
Impedance (Ohm) | D1 or D2 | D1 or D2 | D1 or D2 | D1 or D2 |
Sd | 324cm² | 481cm² | 823cm² | 1217cm² |
Vas | 12.42 liters | 27.38 liters | 80.16 liters | 175.29 liters |
Cms | .085 mm/N | .085 mm/N | .085 mm/N | .085 mm/N |
Mms | 184.5 g | 207.53 g | 318.5 g | 427.53 g |
Fs | 40.2 Hz | 37.9 Hz | 30.6 Hz | 26.4 Hz |
BL | 19.18 NA | 19.18 NA | 19.18 NA | 19.18 NA |
Re | 3.82 Ohm | 3.82 Ohm | 3.82 Ohm | 3.82 Ohm |
Le | 3.78 mH | 3.78 mH | 3.78 mH | 3.78 mH |
Qms | 7.77 | 8.24 | 10.2 | 11.82 |
Qes | .49 | .52 | .644 | .746 |
Qts | .461 | .489 | .60 | .701 |
Xmax | 23.5 mm | 23.5 mm | 23.5 mm | 23.5 mm |
Ref SPL @ 1 watt | 84 dB | 86.4 dB | 87.4 dB | 88.2 dB |
Suggested Sealed | .75³ ft | 1³ ft | 2.75³ ft | 4³ ft |
Suggested Ported | 1³ ft | 1.5³ ft | 3.25³ ft | 6³ ft |
