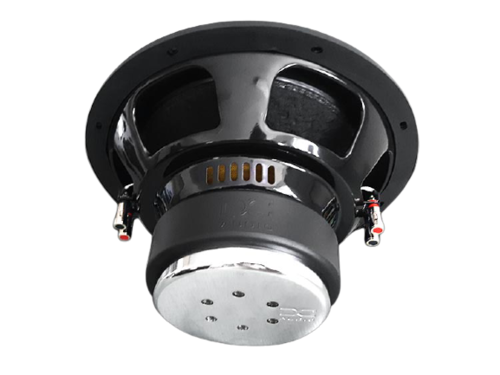

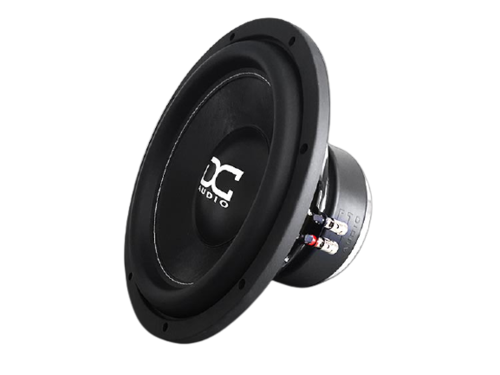

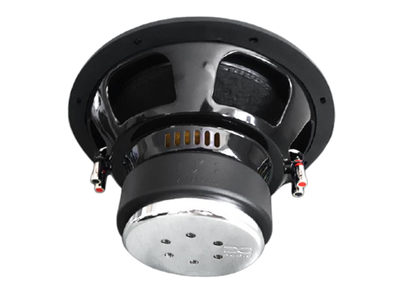

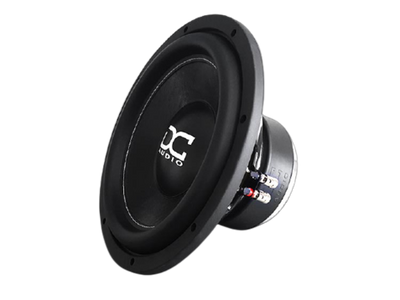

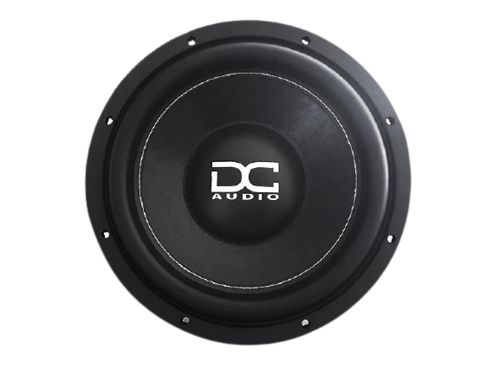

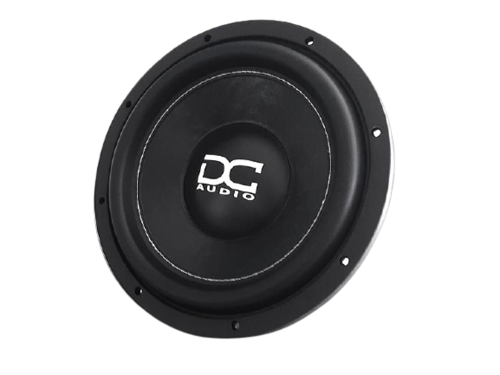

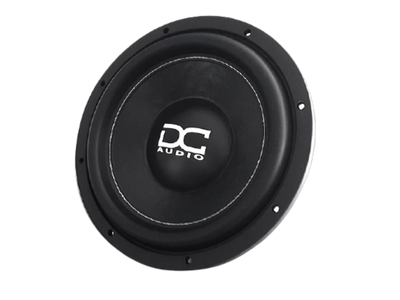

Name: DC Audio Level 1 12"
Brand: DC Audio - SHCA
SKU: DCA-LVL1-12-D2
Price: 149.99 USD
Availability: InStock

$149.99

Free shipping*

Key Features
• Extremely rigid non-pressed paper cone assembly
• Multilayered polymer wide roll foam surround
• Polypropylene dust cover with embossed DC logo
• 8” OD flat linear roll spider
• Heavy duty interweaved tinsel lead wire sewn to the spider
• Cast aluminum black frame
• FEA analyzed and optimized motor assembly - Fully CNC machined
• Rubber mounting gasket
• Chrome spring loaded push terminals
• 2” Hi-temp copper voice coil wound on black anodized voice coil former
• Rubber magnet cover

	10"	12"
Mounting Depth	5.5"	6"
Mounting Hole Diameter	9.35"	11"
Outside Driver Diameter	11.0"	12.5"
Weight	18lbs	18.5lbs
VC Diameter	2"	2"
Displacement
Magnet Weight	15lbs	15lbs
Power Handling RMS/Peak	300/600	300/600
Impedance (Ohm)	D2 or D4	D2 or D4
Sd	78.5 in^2	78.5 in^2
Vas	1.26 (ft^3)	1.26 (ft^3)
Cms
Mms	162.2 g	162.2 g
Fs	40.0 Hz	40.0 Hz
BL
Re	8.20 Ohms	8.20 Ohms
Le
Qms	2.27	2.27
Qes	0.75	0.75
Qts	0.56	0.56
Xmax
Ref SPL @ 1 watt
Suggested Sealed	.5³ ft	.75³ ft
Suggested Ported	1.0³ ft	1.25³ ft
