$89.99

Free shipping*

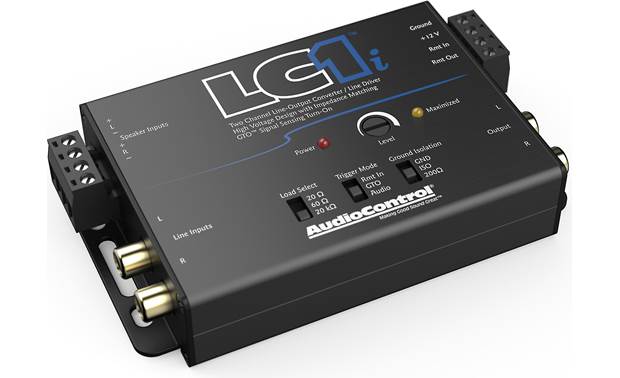

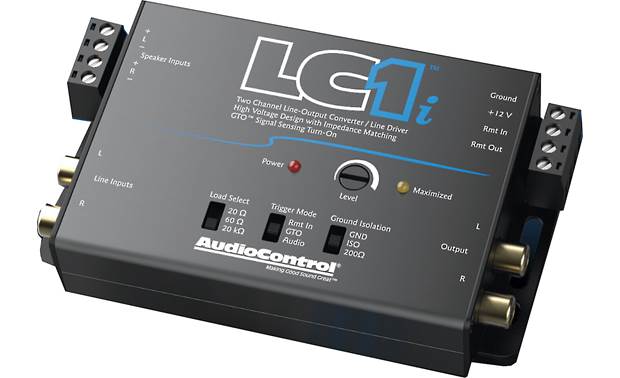

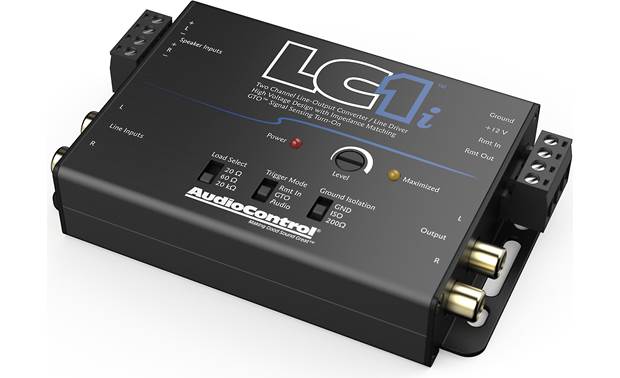

2 Channel Line Out Converter And Line Driver

The LC1i joins ranks with AudioControl’s most popular active line output converter, the LC2i. Adding a sub? Planning a full system? Either way, get the best possible signal from your factory sound system to your amplifiers. Load selection switches mean OEM integration has never been easier and the LC1 will work with the most finicky factory sound systems. Installer friendly turn on trigger modes allow for flexibility via GTO™ Signal Sense (DC offset), audio sense, or remote 12 volt inputs. For future head unit upgrades, the LC1i is also a line driver and can remain in the system to provide optimal preamp signal.

Features

Two channels of active speaker level inputs (up to 40V input handling)
Two channels of line level inputs
Load Selection Switch
GTOTM Signal Sensing
Ground Isolation Switch
Compact design

Specifications

Inputs

Speaker Level Input: 1 (2 channels)
Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
Speaker Level Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
Line Level Input: 1 (2 channels)
Line Level Input Impedance: 7kΩ

Outputs

Preamp Outputs: 1 (2 channels)
Maximum Output Level: 9.5Vrms/13V peak
Output Gain: +/- 12 dB
Output Impedance: 150Ω

Performance

Total Harmonic Distortion: 0.01%
Signal to Noise: >110 dB
Frequency Response: 20 Hz – 50 kHz ±1 dB

Control

Remote In / GTO™ Signal Sense / Audio Sense
12VDC Remote Out (always active when unit is on)

General

Current Draw: 120 mA
Recommended Fuse Rating: 1 A

Weights & dimensions

Dimensions: 4.8″L x 3″D x 1″H (including speaker connectors)
Weight: 0.55 lbs. (0.25 kg)

In the box: LC1i, Speaker and Power Connectors, Manual, Warranty
