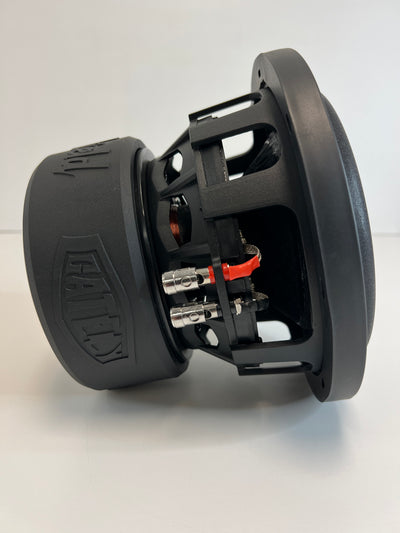

Name: Gately - Shield 8" Subwoofer
Brand: Gately Audio
SKU: GS-S8D2
Price: 169.0 USD
Availability: InStock

$169.00

Free shipping*

Embossed Gately Audio dustcap with paper cone stitched to a high roll surround.

Black powder-coated GATELY engineered basket

Dual Progressive nomex spiders with stitched flat wound tinsel leads connect to oversized push terminals.

8” Shield subwoofers use a 2.5” 4 layer high temp copper wound while the voice coil.

Shield 8” have a motor structure that consists of a 2 layer Y35 ferrite magnet that measures 5.75” in diameter by 1” thick per slug.

Mounting depth = 5.75"
Mounting diameter = 7.3125"
Outside diameter = 8.75"

Recommended sealed enclosure = .3'-.4'
Recommended Ported enclosure = .55'-.8'

SPECIFICATIONS
Watts	600 RMS
MIN INTERNAL VOL	0.55 cubic feet
MAX INTERNAL VOL	0.8 cubic feet
MIN Port Area	9 sq inches
MAX Port Area	12 sq inches

Model: Shield 8 D2
f(s) = 37.45 Hz
Q(ts) = 0.5151
V(as) = 6.251 liters (0.2208 cubic feet)
SPL = 79.46 dB SPL 1W/1m
Nominal Diam. = 0 mm (0 in.)

R(e) = 1.115 Ohms
Q(es) = 0.5747
Piston Diam. = 158.8 mm (6.25 in.)
SPL = 88.02 dB SPL 2.83 Vrms
C(ms) = 0.114 mm/N

Z(max) = 10.76 Ohms
L(e) = 0.3901 mH at 10kHz
Q(ms) = 4.97
BL = 8.521
n(0) = 0.05447 %
M(ms) = 159 grams

--------------------------------------------------------------------

Model: Shield 8 D4
f(s) = 40.14 Hz
Q(ts) = 0.5674
V(as) = 6.037 liters (0.2132 cubic feet)
SPL = 79.76 dB SPL 1W/1m
Nominal Diam. = 0 mm (0 in.)

R(e) = 2.021 Ohms
Q(es) = 0.6382
Piston Diam. = 158.8 mm (6.25 in.)
SPL = 85.73 dB SPL 2.83 Vrms
C(ms) = 0.11 mm/N

Z(max) = 18.21 Ohms
L(e) = 0.5859 mH at 10kHz
Q(ms) = 5.115
BL = 10.7
n(0) = 0.05833 %
M(ms) = 143.3 grams

As soon as your item is ready to ship you will receive an email with tracking information. We use FedEx, UPS and YRC Freight for all shipments.

*Shipping is free in the lower 48 states, unless otherwise stated.
