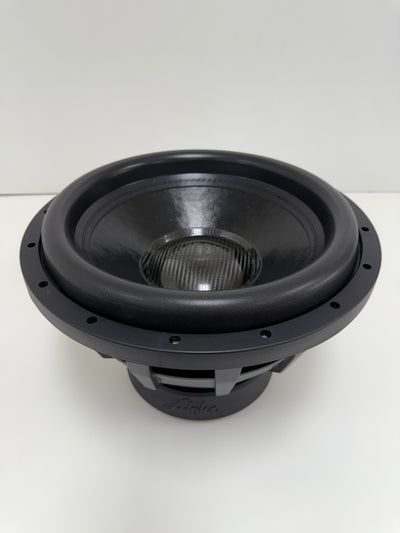

Alpha 15 Cone View
Alpha 15 Cone/Dustcap View
Alpha 15 Basket/Boot View
Alpha 15 Basket/Terminal View
Alpha 15 Basket/Side View
Alpha 15 Basket/Side View 2
Alpha 15 Bottom View

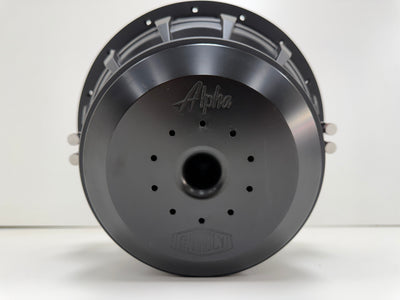

Alpha 15 Bottom

Vendor:Gately Audio

Alpha 15" Subwoofer (2000w)

$659.00

Built to order, ships in 2-3 weeks.

FREE shipping to the lower 48

Product details

Description

GATELY AUDIO Alpha series 15" subwoofer.

Cutout Diameter 14.1"
Mounting Depth 9"

3" 4 layer voice coil
8.5" Y35 250oz Ferrite Motor
GATELY shield embossed carbon fiber dustcap
2000 watt RMS

 Weight: 50 lbs.

 SPECIFICATIONS



Watts

2000 RMS
MIN INTERNAL VOL 3.0 cubic feet
MAX INTERNAL VOL 4.0 cubic feet
MIN Port Area 40 sq inches
MAX Port Area 50 sq inches

Alpha 15 D1
f(s) = 30.89 Hz
Q(ts) = 0.5316
V(as) = 58.39 liters (2.062 cubic feet)
SPL = 86.55 dB SPL 1W/1m
Nominal Diam. = 0 mm (15 in.)
R(e) = 2.266 Ohms
Q(es) = 0.5885
Piston Diam. = 323.9 mm (12.75 in.)
SPL = 92.03 dB SPL 2.83 Vrms
C(ms) = 6.1e-05 mm/N
Z(max) = 23.44 Ohms
L(e) = 2.377 mH at 1kHz
Q(ms) = 5.497
BL = 18
n(0) = 0.2788 %
M(ms) = 433.3 grams
-------------------------------------------------
Alpha 15 D2
f(s) = 31.36 Hz
Q(ts) = 0.6138
V(as) = 59.54 liters (2.103 cubic feet)
SPL = 86.11 dB SPL 1W/1m
Nominal Diam. = 0 mm (15 in.)
R(e) = 4.594 Ohms
Q(es) = 0.6958
Piston Diam. = 323.9 mm (12.75 in.)
SPL = 88.52 dB SPL 2.83 Vrms
C(ms) = 6.2e-05 mm/N
Z(max) = 38.97 Ohms
L(e) = 3.878 mH at 1kHz
Q(ms) = 5.206
BL = 23.16
n(0) = 0.2516 %
M(ms) = 412.3 grams
-------------------------------------------------

Alpha 15" D3
f(s) = 34.42 Hz
Q(ts) = 0.675
V(as) = 51.46 liters (1.817 cubic feet)
SPL = 86.33 dB SPL 1W/1m
Nominal Diam. = 0 mm (15 in.)

Model: Alpha V2 15 inch Dual 3 Ohm
R(e) = 1.631 Ohms
Q(es) = 0.7549
Piston Diam. = 323.9 mm (12.75 in.)
SPL = 93.24 dB SPL 2.83 Vrms
C(ms) = 0.054 mm/N

Z(max) = 15.4 Ohms
L(e) = 0.577 mH at 10kHz
Q(ms) = 6.374
BL = 13.6
n(0) = 0.265 %
M(ms) = 396 grams
