Name: Gately Audio G5-1700D Amplifier
Brand: Gately Audio
SKU: G5-1700D
Price: 899.0 USD
Availability: InStock

$899.00

Free shipping*

The Gately High Performance Car Audio Amplifiers exemplify excellence. With over 30 years of industry experience, the Gately Audio Amplifiers were developed to suit all car audio enthusiasts from the bass-head to the sound quality competitor.

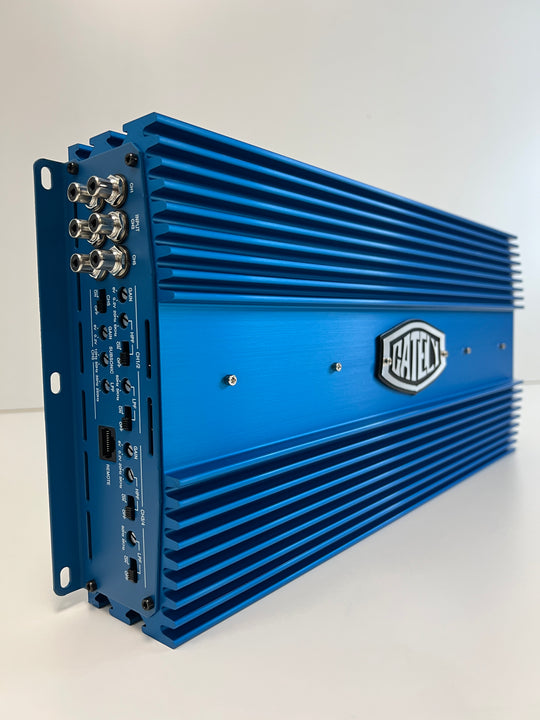

The anodized Gately Blue heatsink features an aluminum Gately emblem that can be adjusted to various positions to accommodate any number of amplifier configurations.

G5-1700D FEATURES

Full Range Digital 5 Channel Amplifier
Double Sided Through Hole Epoxy PCB
Multi-Way Protection Circuitry (Thermal/Voltage/Speaker Short/DC Offset)
Wired Remote Control Bass Knob displays Voltage, Temperature, and Clip light

G5-1700D SPECIFICATIONS

Dimensions: 19.5" long x 3" tall X 8.625" wide
Weight: 14.6lbs.
Input Sensitivity : 6V - 0.2V
1300 x 1 @ 1 ohms RMS Stereo
220 x 4 + 800 x 1 @ 2 ohms RMS Stereo
125 x 4 +480 x 1 @ 4 ohms RMS Stereo
2 OHM Stereo Stable / 4 OHM Bridged Stable
Variable Subsonic Crossover Filter : 10HZ - 100HZ
Variable High Pass Filter : 50HZ - 5000HZ
Variable Low Pass Filter : 50HZ - 5000HZ
Ch 5 Subsonic 10Hz - 50Hz, low pass filter 35Hz - 250Hz
Efficiency : 75% 4OHM, at 100HZ
Signal / Noise Ratio : 105DB <
Damping Factor : 400 <
Frequency Response : 10 Hz – 25khz
12DB/ OCT Variable Crossover Slope (HPF/LPF)
12DB/ OCT Variable Subsonic Crossover Slope
Tested Voltage & THD : 12.8V & Less Than 1% THD
Operation Voltage : DC 9V - 15.5V Power Input
Recommended Fuse : 200 Amps
1/0 Gauge Power and Ground Inputs

As soon as your item is ready to ship you will receive an email with tracking information. We use FedEx, UPS and YRC Freight for all shipments.

*Shipping is free in the lower 48 states, unless otherwise stated.

throw all others away!

i have been doing car stereo for 20 plus years. I was sick of running 1/0 then to a distro- block, for power AND ground then running 4 more wires to the 2 separate amps.
i have had 5 channel amps in the past after that, but i was limited on sub woofer size and performance because the sub channels e only about 500 watts rms. So for me to have an spl type sub and amazing mids and highs i needed to have beefy amps at least 1200 watts rms on the sub, 75 watts on the mids and highs. most of the time when i looked for those amps requiring power requirements, i would see i needed extra battery, bigger alternator, big 3 and a prayer. i have a 2016 passat with a AGM battery, stock 150 amp alternator and I did upgrade the ground. I have a stock battery regulator so the stock 2 gauge wire would have to do. i called Bobby Gately and he was awesome on the phone. Bragged about the amp and told me with the right power i would see more wattage and it would be clean. well according to my included sub volume knob with temp and voltage my "1" amp see's average of 14.8 volts! and the amp is nice and cool (built in fan) and sounds amazing! he told me with that power i can be seeing absolutely more. So it looks awesome, sounds amazing looks bad ass built like a tank and has a great company behind it. for $900 price tag you will see why I'm a One Amp Guy. open the "gate" and come over to a new world of a car stereo experience.
