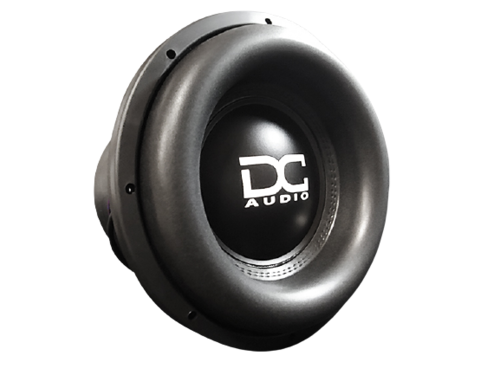

Name: DC Audio XL Elite 18"
Brand: DC Audio - SHCA
SKU: DCA-XLE-18-D.7
Price: 929.99 USD
Availability: InStock

$929.99

Free shipping*

The XL m4 ELITE is an Evolution of our #1 Selling XL Subwoofer line. We have redesigned the motor giving it a fresh new look, Added a pole vent and larger magnets, FEA optimized it and mated it with the DC Frame using 10 inch spiders.

The sub came from demand. XL style motor, 3 inch 8 layer coil, 10 inch spiders and the “famous for its performance and good looks” DC Frame in 15 and 18!!

Key Features

• Extremely rigid non-pressed paper cone assembly

• Multilayered polymer foam surround

• Polypropylene dust cover with DC logo

• Quad 10"OD Spiders

• Dual Extra heavy duty interweaved tinsel lead wire

• Cast Heavy Duty DC Aluminum black & Grind frame

• FEA analyzed and optimized motor assembly – Fully CNC machined

• Rubber mounting gasket

• 8 Awg Direct Leads

• Dual 0.7, 1.0, 1.4 or 2 ohm 3" 8 Layer Hi-temp Aluminum Stealth Coil

Sub Size	12"	15"	18"
Mounting Depth	9.75"	11.00"	12.00"
Mounting Hole Diameter	11.15"	14.25"	16.90"
Outside Driver Diameter	12.50"	15.70"	18.50"
Motor Width	8.75"	8.75"	8.75"
Weight	65lbs	66lbs	67lbs
VC Diameter	3"	3"	3"
Displacement	.18³ ft	.20³ ft	.25³ ft
Magnet Weight	54lbs	54lbs	54lbs
Power Handling RMS/Peak	2200/4400	2200/4400	2200/4400
Impedance (Ohm)	D.7/D1/D1.4/D2	D.7/D1/D1.4/D2	D.7/D1/D1.4/D2
Sd	494.00cm²	791.00cm²	1159.00cm²
Vas	liters	liters	liters
Cms	mm/N	mm/N	mm/N
Mms	g	367.4 g	g
Fs		32.9
BL	22.73 N/A	22.73 N/A	22.73 N/A
Re	3.98 ohm	1.8 ohm	3.98 ohm
Le	mH	mH	mH
Qms		6.31
Qes		0.37
Qts		0.35
Xmax
Ref SPL @ 1 watt	dB	90.3 dB	dB
Suggested Sealed	n/a	n/a	n/a
Suggested Ported	1.5³ ft	3.5³ ft	5.5³ ft
