The Level 4 m2 was designed to take even more power and get even louder than the m1. With fantastic power handling and smashing lows its hard to beat.

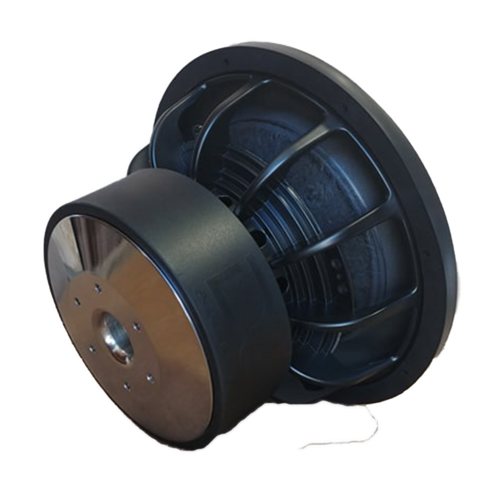

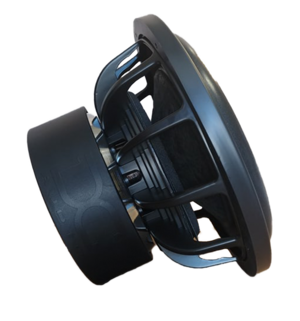

The Level 4 sub is a large triple stacked motor, wrapped in a magnet boot with a chrome top plate and T yoke yielding 23.5mm of X-Max.

Furthermore, you get the upgraded triple progressive spiders, cone, surround, 3" coil, cast basket, push terminals and upgraded lead wire sewn to the spider. This sub is rated at 1400w RMS and 2800w peak.

Ported or sealed, this is a great choice for high-powered daily systems and competitors.
As always, this sub is made with high quality parts and hand built in the USA.

Key Features
• Extremely rigid non-pressed paper cone assembly
• Multilayered polymer foam surround
• Polypropylene dust cover with embossed DC logo
• Triple 8"OD semi cup progressive roll spider
• Extra heavy duty interweaved tinsel lead wire sewn down to spider
• Cast aluminum black frame
• FEA analyzed and optimized motor assembly – Fully CNC machined
• Rubber mounting gasket
• Chrome spring loaded push terminals
• 3" Hi-temp Edge wound aluminum voice coil wound on black anodized voice coil former
• Rubber magnet cover





  10" 12" 15" 18"
Mounting Depth 6.25" 6.75" 8" 9.5"
Mounting Hole Diameter 9.25" 11" 14" 16.75"
Outside Driver Diameter 11.0" 12.5" 15.7" 18.5"
Motor Width 7.75" 7.75" 7.75" 7.75"
Weight 32lbs 33lbs 33.5lbs 36lbs
VC Diameter 3" 3" 3" 3"
Displacement .16³ ft .18³ ft .21³ ft .26³ ft
Magnet Weight 29lbs 29lbs 29lbs 29lbs
Power Handling RMS/Peak 1400/2800 1400/2800 1400/2800 1400/2800
Impedance (Ohm) D1 or D2 D1 or D2 D1 or D2 D1 or D2
Sd 324cm² 481cm² 823cm² 1217cm²
Vas 12.42 liters 27.38 liters 80.16 liters 175.29 liters
Cms .085 mm/N .085 mm/N .085 mm/N .085 mm/N
Mms 184.5 g 207.53 g 318.5 g 427.53 g
Fs 40.2 Hz 37.9 Hz 30.6 Hz 26.4 Hz
BL 19.18 NA 19.18 NA 19.18 NA 19.18 NA
Re 3.82 Ohm 3.82 Ohm 3.82 Ohm 3.82 Ohm
Le 3.78 mH 3.78 mH 3.78 mH 3.78 mH
Qms 7.77 8.24 10.2 11.82
Qes .49 .52 .644 .746
Qts .461 .489 .60 .701
Xmax 23.5 mm 23.5 mm 23.5 mm 23.5 mm
Ref SPL @ 1 watt 84 dB 86.4 dB 87.4 dB 88.2 dB
Suggested Sealed .75³ ft 1³ ft 2.75³ ft 4³ ft
Suggested Ported  1³ ft 1.5³ ft 3.25³ ft 6³ ft
