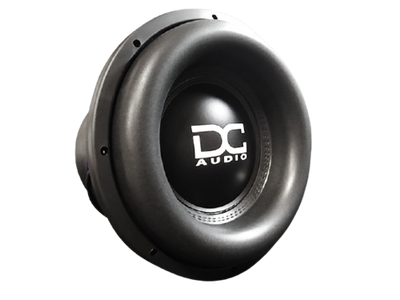

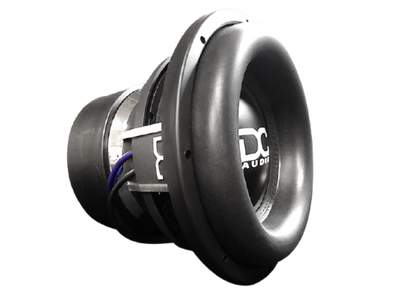

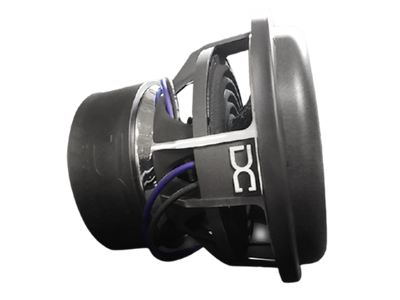

DC Audio XL Elite 15"
DC Audio XL Elite 15"
DC Audio XL Elite 15"
DC Audio XL Elite 15"

DC Audio XL Elite 15"

Regular price$869.99
/

  • Free shipping*

The XL m4 ELITE is an Evolution of our #1 Selling XL Subwoofer line. We have redesigned the motor giving it a fresh new look, Added a pole vent and larger magnets, FEA optimized it and mated it with the DC Frame using 10 inch spiders.

The sub came from demand. XL style motor, 3 inch 8 layer coil, 10 inch spiders and the “famous for its performance and good looks” DC Frame in 15 and 18!!



Key Features

• Extremely rigid non-pressed paper cone assembly

• Multilayered polymer foam surround

• Polypropylene dust cover with DC logo

• Quad 10"OD Spiders

• Dual Extra heavy duty interweaved tinsel lead wire

• Cast Heavy Duty DC Aluminum black & Grind frame

• FEA analyzed and optimized motor assembly – Fully CNC machined

• Rubber mounting gasket

• 8 Awg Direct Leads

• Dual 0.7, 1.0, 1.4 or 2 ohm 3" 8 Layer Hi-temp Aluminum Stealth Coil



Sub Size 12" 15" 18"
Mounting Depth 9.75" 11.00" 12.00"
Mounting Hole Diameter 11.15" 14.25" 16.90"
Outside Driver Diameter 12.50" 15.70" 18.50"
Motor Width 8.75" 8.75" 8.75"
Weight 65lbs 66lbs 67lbs
VC Diameter 3" 3" 3"
Displacement .18³ ft .20³ ft .25³ ft
Magnet Weight 54lbs 54lbs 54lbs
Power Handling RMS/Peak 2200/4400 2200/4400 2200/4400
Impedance (Ohm) D.7/D1/D1.4/D2 D.7/D1/D1.4/D2 D.7/D1/D1.4/D2
Sd 494.00cm² 791.00cm² 1159.00cm²
Vas liters liters liters
Cms mm/N mm/N mm/N
Mms g 367.4 g g
Fs   32.9
BL 22.73 N/A 22.73 N/A 22.73 N/A
Re 3.98 ohm 1.8 ohm 3.98 ohm
Le mH mH mH
Qms   6.31
Qes   0.37
Qts   0.35
Xmax
Ref SPL @ 1 watt dB 90.3 dB dB
Suggested Sealed n/a n/a n/a
Suggested Ported  1.5³ ft 3.5³ ft 5.5³ ft
