The Gately High Performance Car Audio Amplifiers exemplify excellence. With over 30 years of industry experience, the Gately Audio Amplifiers were developed to suit all car audio enthusiasts from the bass-head to the sound quality competitor.

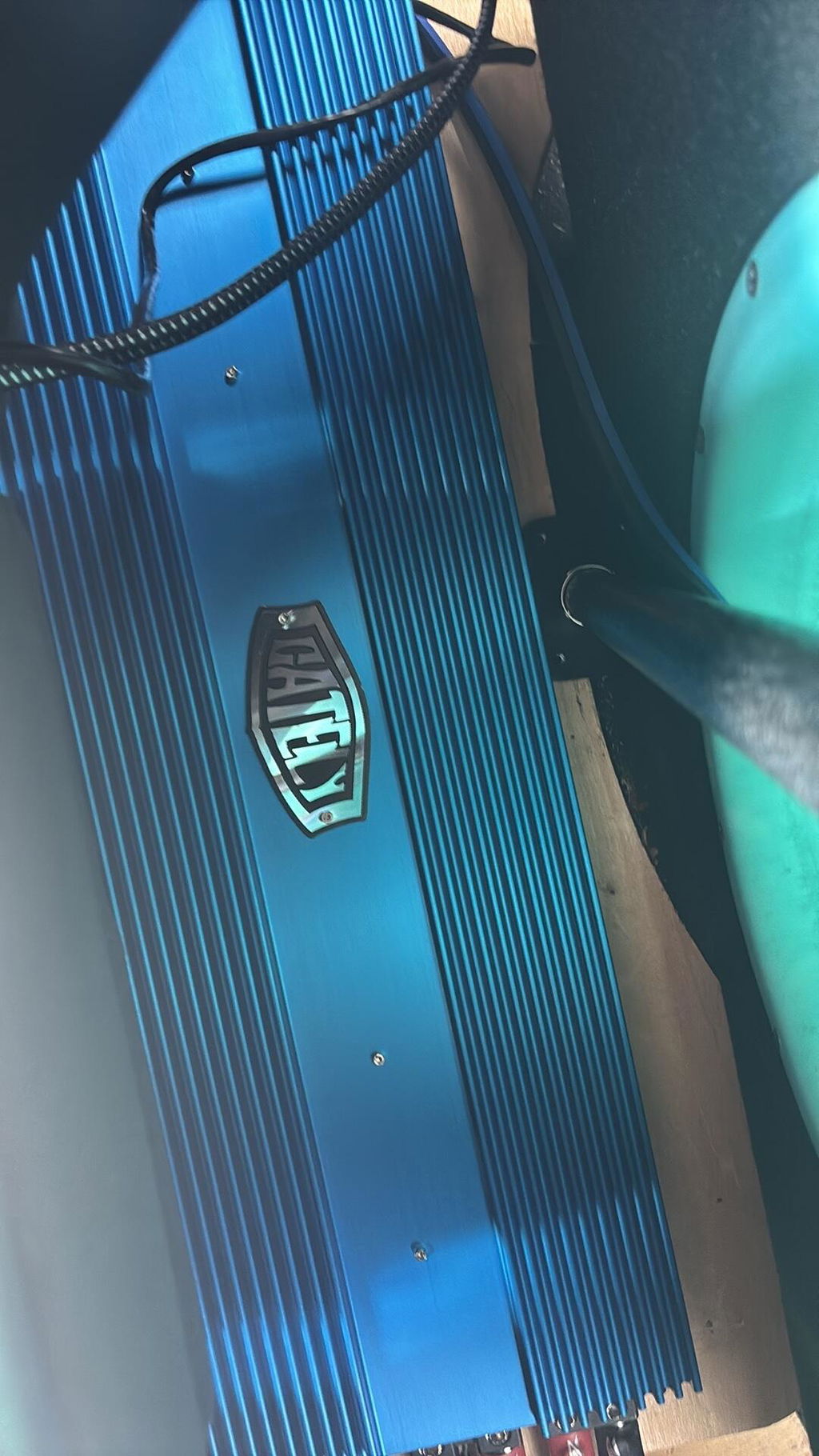

The anodized Gately Blue heatsink features an aluminum Gately emblem that can be adjusted to various positions to accommodate any number of amplifier configurations.

G4-800D FEATURES

• Class D 4 Channel Amplifier
• Variable high pass filter
• Variable low pass filter

• 8awg Speaker Connections
• 0/1awg Power Inputs
• Double Sided Printed Circuit Board
• Double Sided Through Hole Epoxy PCB

G4-800D SPECIFICATIONS

• Dimensions: 13" long  x 3" tall X 8.75" wide

• Weight: 16.5lbs.
• Input Sensitivity : 6V - 0.2V
• 100 x 4 4 ohms RMS Stereo
• 220 x 4 2 ohms RMS Stereo

• 440 x 2 2 ohms RMS Bridged
• 2 OHM Stereo Stable / 4 OHM Bridged Stable
• Variable Subsonic Crossover Filter : 10HZ - 100HZ
• Variable High Pass Filter: 20HZ - 800HZ (200Hz - 8000Hz with 10X multiplier switch)
• Variable Low Pass Filter: 50HZ - 800HZ (500Hz - 8000Hz with 10X multiplier switch)
