DC Audio 10.0k - 10,000w Monoblock Amplifier

$2,639.99
/
  • Free shipping*

The 10.0kw competition series amplifier is a 10,000 watt mono block. It is built for 12 volt audio systems.

It will not operate on 16 or 18 volt systems. It is a linkable amp and designed to run at 1 ohm per amp or 2 ohms when strapped for 20,000 watts of power. It comes with a bass knob and a clipping indicator.

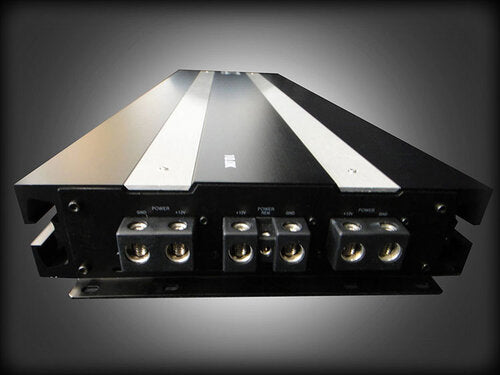

For power inputs it will accept triple 0 awg for power and triple 0 awg for ground.

Key Features

• 1 ohm stable
• Variable low pass filter
• Variable subsonic filter
• Variable bass boost
• Wired remote control
• Triple 0 awg power and ground inputs

We recommend for installation
• 1 upgraded battery under the hood
• 3 extra 800ci battery in the rear
• Minimum of two 0 awg ran from the front battery to the rear batterys
• All 0 awg power and ground inputs on amp must have 0 awg ran to them for a total of 6 runs into the amp
• 2 upgraded aftermarket alternators
• Dash mounted voltage meter

  Features Voltage 10.0kw
Output Power (RMS) 4 ohm 14.4V 3,000W x 1
2 ohm 5,500W x 1
1 ohm 10,000W x 1
1 ohm 16V N/A
1 ohm 18V N/A
Input Sensitivity     6V~0.2V
Low Pass Filter Switchable
( @ 24 dB Slope) Variable Hz 35~250
Subsonic Filter Switchable
( @ 24dB slope ) Variable Hz 10~50
Bass Boost Variable dB 0-9dB
Frequency Response   Hz 15-270
Signal to Noise Ratio   dB 100
Damping factor     150<
Efficiency @ 4ohm   % Over 90%
THD @ 4ohms     Less than 0.1%
Fuse Rating     1,000 Amps
Linked Fuse Rating     2,000 Amps
Indicator Power   Yes
Protection   Yes
Clip   Yes
Speaker & Power terminal Mold Type    Yes
Power Gauge 0Ga x 3
Heatsink Length     37
Heatsink Width inch/mm   11.5
Heatsink Height     2.6

As soon as your item is ready to ship you will receive an email with tracking information. We use FedEx, UPS and YRC Freight for all shipments.

*Shipping is free in the lower 48 states, unless otherwise stated.
