Name: DC Audio 10.0k - 10,000w Monoblock Amplifier
Brand: DC Audio - SHCA
SKU: DCA-10k
Price: 2639.99 USD
Availability: InStock

DC Audio 10.0k - 10,000w Monoblock Amplifier

$2,639.99

Free shipping*

The 10.0kw competition series amplifier is a 10,000 watt mono block. It is built for 12 volt audio systems.

It will not operate on 16 or 18 volt systems. It is a linkable amp and designed to run at 1 ohm per amp or 2 ohms when strapped for 20,000 watts of power. It comes with a bass knob and a clipping indicator.

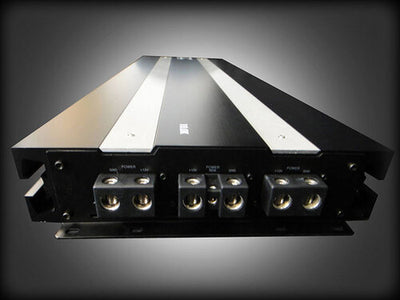

For power inputs it will accept triple 0 awg for power and triple 0 awg for ground.

Key Features

• 1 ohm stable
• Variable low pass filter
• Variable subsonic filter
• Variable bass boost
• Wired remote control
• Triple 0 awg power and ground inputs

We recommend for installation
• 1 upgraded battery under the hood
• 3 extra 800ci battery in the rear
• Minimum of two 0 awg ran from the front battery to the rear batterys
• All 0 awg power and ground inputs on amp must have 0 awg ran to them for a total of 6 runs into the amp
• 2 upgraded aftermarket alternators
• Dash mounted voltage meter

	Features	Voltage	10.0kw
Output Power (RMS)	4 ohm	14.4V	3,000W x 1
	2 ohm		5,500W x 1
	1 ohm		10,000W x 1
	1 ohm	16V	N/A
	1 ohm	18V	N/A
Input Sensitivity			6V~0.2V
Low Pass Filter	Switchable
( @ 24 dB Slope)	Variable	Hz	35~250
Subsonic Filter	Switchable
( @ 24dB slope )	Variable	Hz	10~50
Bass Boost	Variable	dB	0-9dB
Frequency Response		Hz	15-270
Signal to Noise Ratio		dB	100
Damping factor			150<
Efficiency @ 4ohm		%	Over 90%
THD @ 4ohms			Less than 0.1%
Fuse Rating			1,000 Amps
Linked Fuse Rating			2,000 Amps
Indicator	Power		Yes
	Protection		Yes
	Clip		Yes
Speaker & Power terminal	Mold Type		Yes
Speaker & Power terminal	Power	Gauge	0Ga x 3
Heatsink Length			37
Heatsink Width	inch/mm		11.5
Heatsink Height			2.6
